Установка OpenLDAP клиента

//> cd /usr/ports/net/openldap23-client/ /usr/ports/net/openldap23-client/> make install clean /usr/ports/net/openldap23-client/> rehash

Установка OpenLDAP сервера

//> cd /usr/ports/net/openldap23-server/ /usr/ports/net/openldap23-server/> make config

+--------------------------------------------------------------------+ | Options for openldap-server 2.3.43 | | +----------------------------------------------------------------+ | | | [ ] SASL With (Cyrus) SASL2 support | | | | [ ] PERL With Perl backend | | | | [ ] SHELL With Shell backend (disables threading) | | | | [ ] ODBC With SQL backend | | | | [ ] SLP With SLPv2 (RFC 2608) support | | | | [ ] SLAPI With Netscape SLAPI plugin API | | | | [X] TCP_WRAPPERS With tcp wrapper support | | | | [X] BDB With BerkeleyDB support | | | | [ ] ACCESSLOG With In-Directory Access Logging overlay| | | | [ ] AUDITLOG With Audit Logging overlay | | | | [ ] DENYOP With Deny Operation overlay | | | | [ ] DYNGROUP With Dynamic Group overlay | | | | [ ] DYNLIST With Dynamic List overlay | | | | [ ] LASTMOD With Last Modification overlay | | | | [ ] PPOLICY With Password Policy overlay | | | | [ ] PROXYCACHE With Proxy Cache overlay | | | | [ ] REFINT With Referential Integrity overlay | | | | [ ] RETCODE With Return Code testing overlay | | | | [ ] RWM With Rewrite/Remap overlay | | | | [ ] SYNCPROV With Syncrepl Provider overlay | | | | [ ] TRANSLUCENT With Translucent Proxy overlay | | | | [ ] UNIQUE With attribute Uniqueness overlay | | | | [ ] VALSORT With Value Sorting overlay | | | | [ ] ACI With per-object ACIs (experimental) | | | | [X] DYNAMIC_BACKENDS Build dynamic backends | | | | [X] SLURPD Build slurpd replication daemon | | +-+------v(+)------------------------------------------------------+-+ | [ OK ] Cancel | +--------------------------------------------------------------------+

/usr/ports/net/openldap23-server/> make install clean /usr/ports/net/openldap23-server/> rehash



Генерируем пароль администратора OpenLDAP командой slappasswd, хеш которого мы ниже добавим в конфиг OpenLDAP


//> slappasswd -s root New password:******* Re-enter new password:******* {SSHA}HaXoFVeJ5HOmvVbFnSB00lCYjIw8N0y+ //>




Теперь займемся конфигом OpenLDAP


//> ee /usr/local/etc/openldap/slapd.conf

# # See slapd.conf(5) for details on configuration options. # This file should NOT be world readable. # include /usr/local/etc/openldap/schema/core.schema include /usr/local/etc/openldap/schema/cosine.schema include /usr/local/etc/openldap/schema/inetorgperson.schema include /usr/local/etc/openldap/schema/misc.schema include /usr/local/etc/openldap/schema/nis.schema include /usr/local/etc/openldap/schema/openldap.schema # Define global ACLs to disable default read access. # Do not enable referrals until AFTER you have a working directory # service AND an understanding of referrals. #referral ldap://root.openldap.org pidfile /var/run/openldap/slapd.pid argsfile /var/run/openldap/slapd.args # Load dynamic backend modules: modulepath /usr/local/libexec/openldap # moduleload back_bdb # moduleload back_ldap moduleload back_ldbm # moduleload back_passwd # moduleload back_shell # Sample security restrictions # Require integrity protection (prevent hijacking) # Require 112-bit (3DES or better) encryption for updates # Require 63-bit encryption for simple bind # security ssf=1 update_ssf=112 simple_bind=64 # Sample access control policy: # Root DSE: allow anyone to read it # Subschema (sub)entry DSE: allow anyone to read it # Other DSEs: # Allow self write access # Allow authenticated users read access # Allow anonymous users to authenticate # Directives needed to implement policy: access to dn.base="" by * read access to dn.base="cn=Subschema" by * read access to * by self write by users read by anonymous auth # # if no access controls are present, the default policy # allows anyone and everyone to read anything but restricts # updates to rootdn. (e.g., "access to * by * read") # # rootdn can always read and write EVERYTHING! ####################################################################### # BDB database definitions ####################################################################### database ldbm suffix "dc=mail,dc=local" rootdn "cn=root,dc=mail,dc=local" # Cleartext passwords, especially for the rootdn, should # be avoid. See slappasswd(8) and slapd.conf(5) for details. # Use of strong authentication encouraged. rootpw {SSHA}HaXoFVeJ5HOmvVbFnSB00lCYjIw8N0y+ # The database directory MUST exist prior to running slapd AND # should only be accessible by the slapd and slap tools. # Mode 700 recommended. directory /var/db/openldap-data loglevel 256 # Indices to maintain index objectClass eq index cn eq




Добавляем в автозагрузку
ldap://127.0.0.1/  - указывем что бы OpenLDAP слушал localhost
ldap://192.168.1.9/ - указывем что бы OpenLDAP слушал Ethernet интерфейс


//> ee /etc/rc.conf

slapd_enable="YES" ## Этот параметр пишите в одну строку без переноса "\" slapd_flags='-h "ldapi://%2fvar%2frun%2fopenldap%2fldapi/ ldap://127.0.0.1/ \ ldap://192.168.1.9/"' ######## slapd_sockets="/var/run/openldap/ldapi"


Запускаем OpenLDAP


//> /usr/local/etc/rc.d/slapd start Starting slapd. //>


Проверяем работает ли он


//> ps axw | grep openldap

1729 ?? Ss 0:00,02 /usr/local/libexec/slapd -h ldapi://%2fvar%2frun%2fopenldap%2fldapi/ ldap://127.0.0.1/ ldap://192.168.1.9/ -u ldap -g ldap 1780 p0 R+ 0:00,00 grep openldap

//> netstat -nap tcp | grep 389

tcp4 0 0 192.168.1.9.389 *.* LISTEN tcp4 0 0 127.0.0.1.389 *.* LISTEN



Создаем КОРЕНЬ


//> ee /var/db/openldap-data/base.ldif

dn: dc=mail, dc=local objectClass: dcObject objectClass: organization objectClass: top dc: mail o: mail

Добавим схему в OpenLDAP


/var/db/openldap-data/>ldapadd -x -D "cn=root,dc=mail,dc=local" \ -h 192.168.1.9 -W -f base.ldif Enter LDAP Password: adding new entry "dc=mail, dc=local" /var/db/openldap-data/>

Установка phpLDAPadmin

//> cd /usr/ports/net/phpldapadmin /usr/ports/net/phpldapadmin/> make install clean /usr/ports/net/phpldapadmin/> rehash



Добавляем алиас в апач


//> ee /usr/local/etc/apache/httpd.conf

Alias /phpldapadmin "/usr/local/www/phpldapadmin/htdocs/" <Directory "/usr/local/www/phpldapadmin/htdocs"> Options none AllowOverride none Order Deny,Allow Deny from all Allow from 127.0.0.1 192.168.1.0/24 .domain.local </Directory>



Слегка правим конфиг


//> ee /usr/local/www/phpldapadmin/config/config.php

$ldapservers->SetValue($i,'server','host','127.0.0.1');

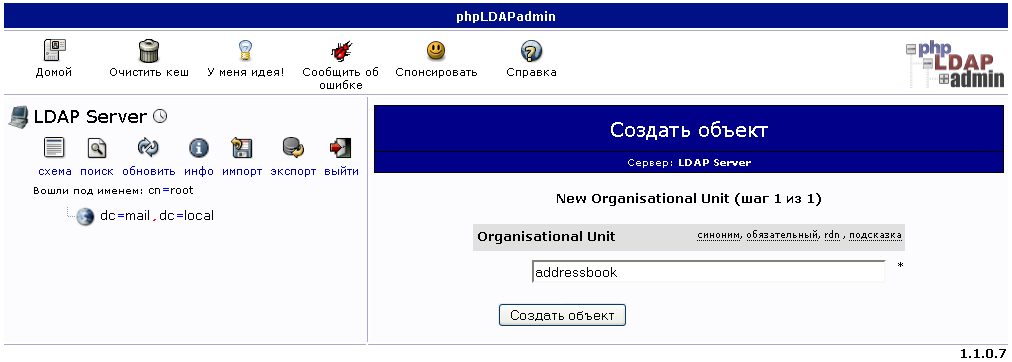

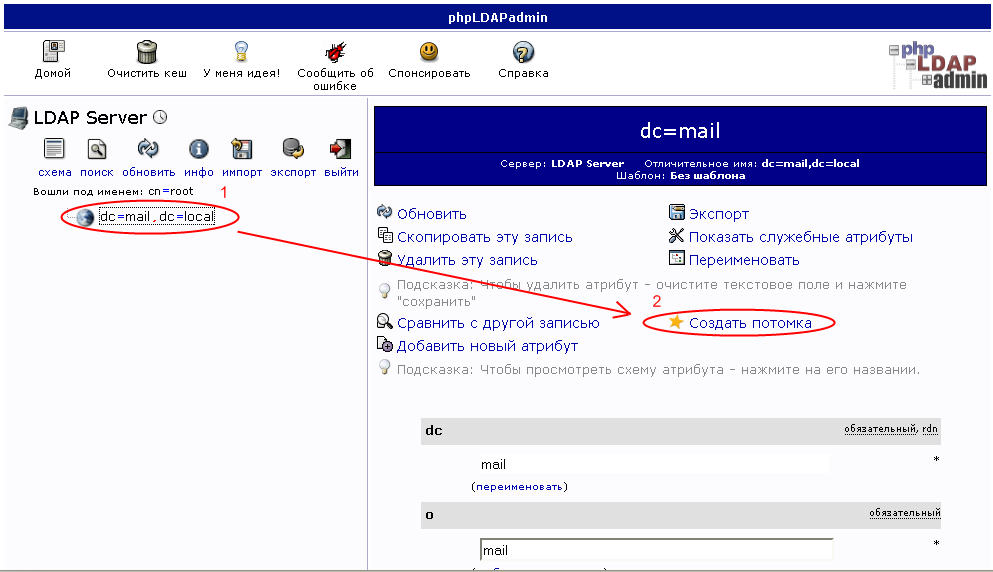

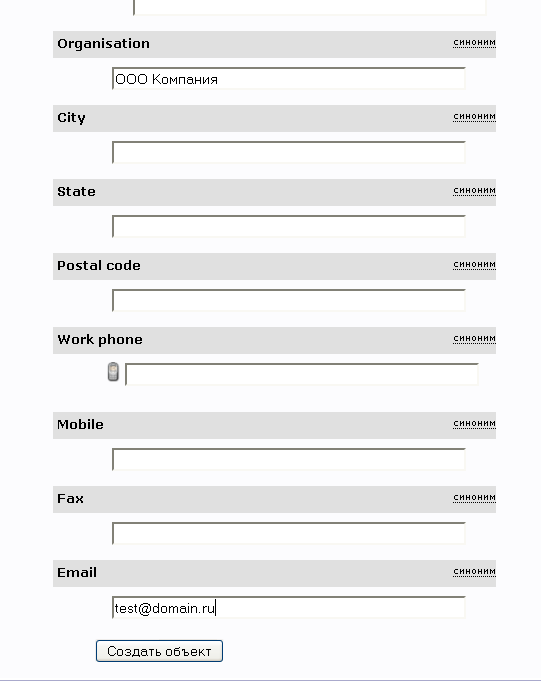

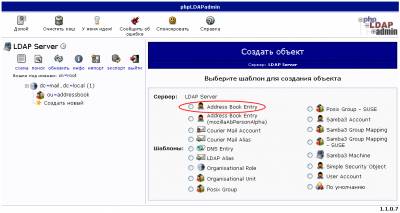

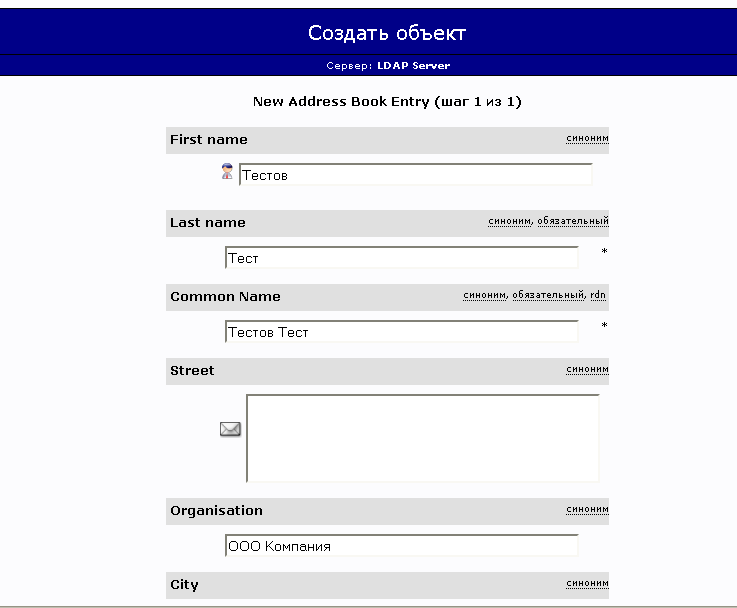

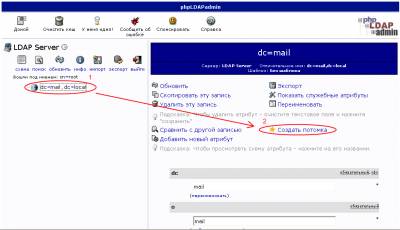

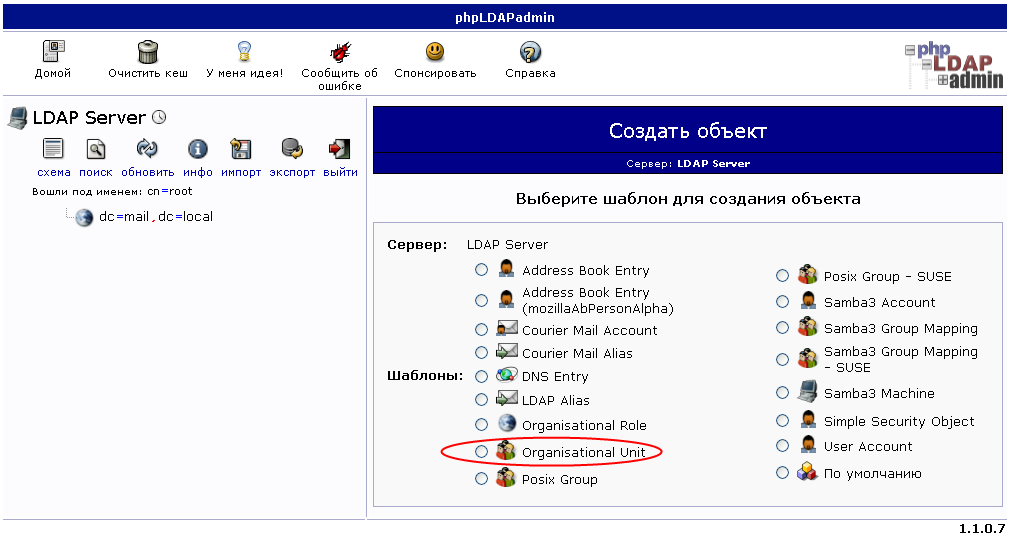

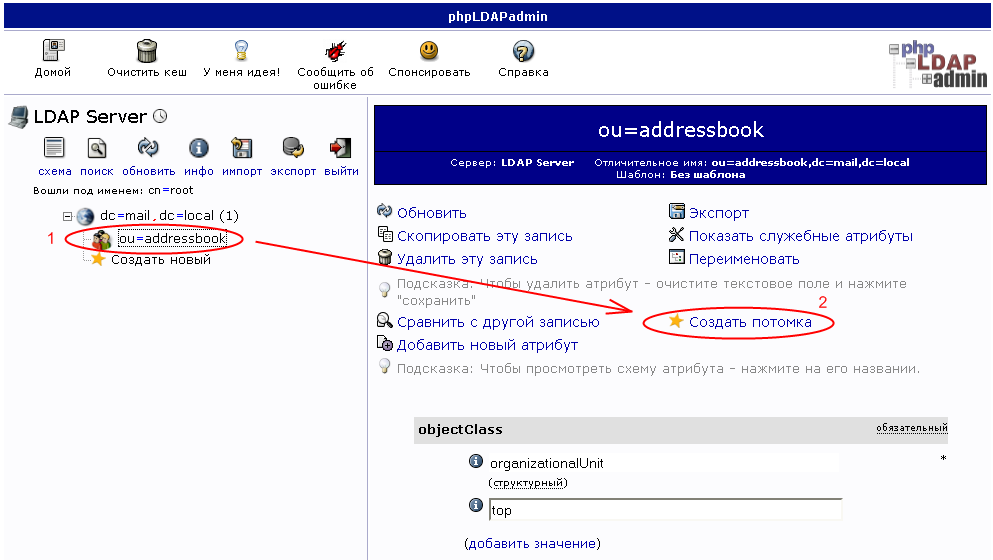

Создание адресной книги
